1Features
- Single-press location dispatch to preset contacts
- Bluetooth Low Energy pairing with a phone
- Compact two-layer board
- Matching enclosure designed alongside the PCB
2Specifications
- Layer count
- 2
- Wireless link
- Bluetooth LE
- Scope
- PCB + enclosure
- Design tools
- Altium, SolidWorks

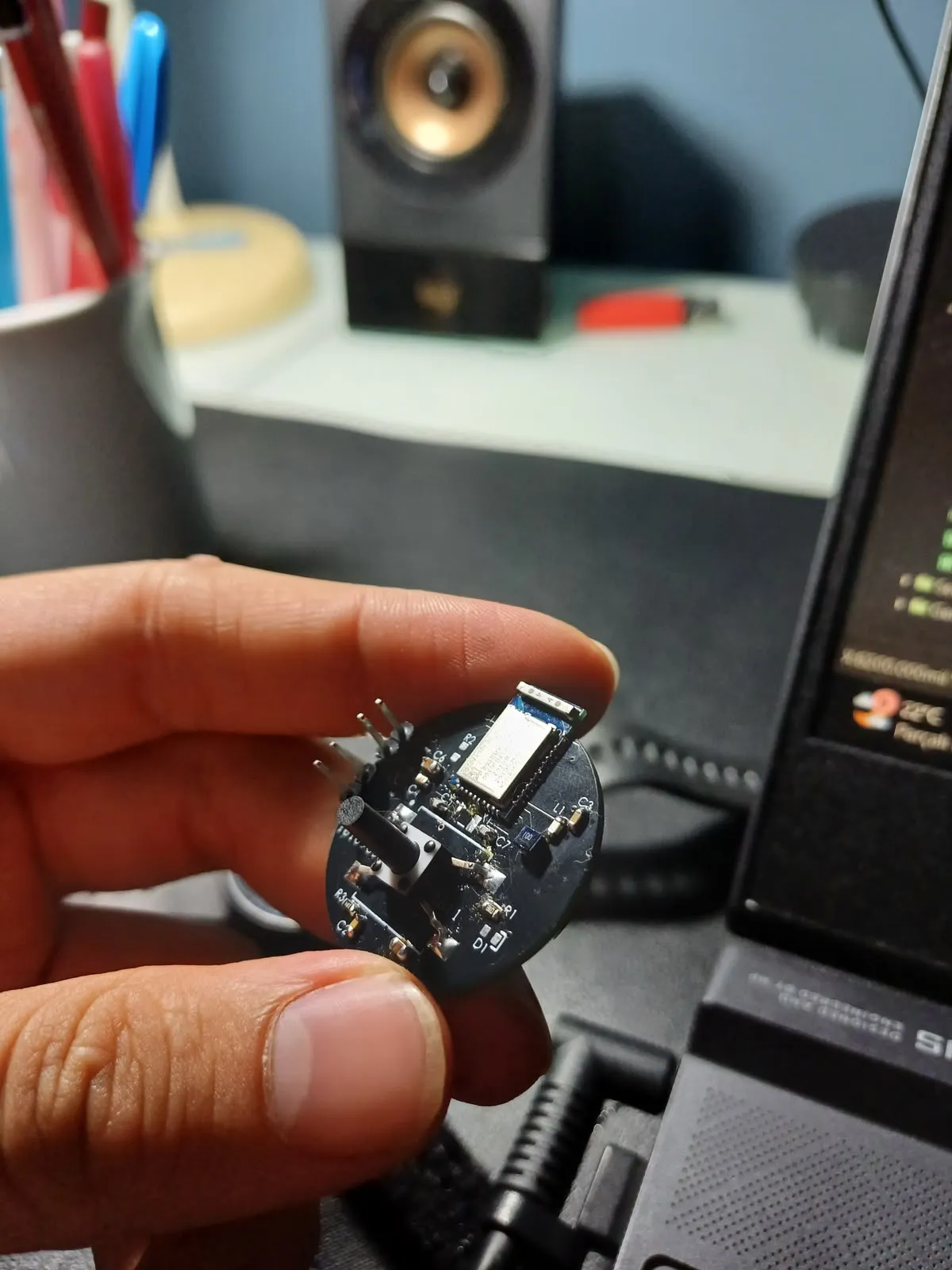

3Figure 1 — Board

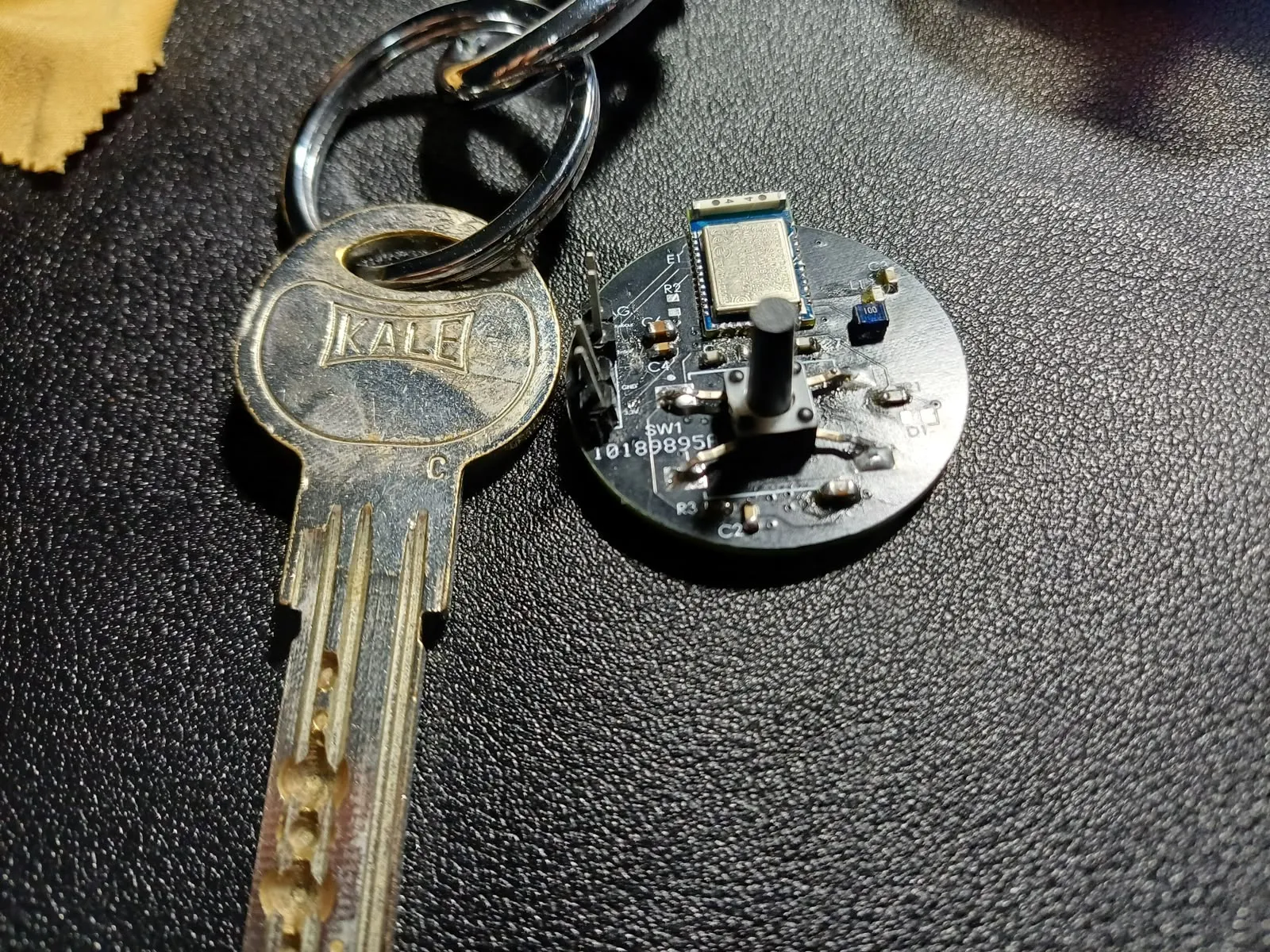

4On the bench
5Description
A compact two-layer board built around the nRF module, pairing with a phone over Bluetooth. One press triggers a location message to pre-set contacts.
The scope covered both the electronics and the enclosure design.
